CNC Turned Threaded Sleeve
Two styles of CNC turned threaded sleeves available: Model 003 stepped sleeve & Model 005 side-hole sleeve. Custom threads and dimensions upon request.
描述

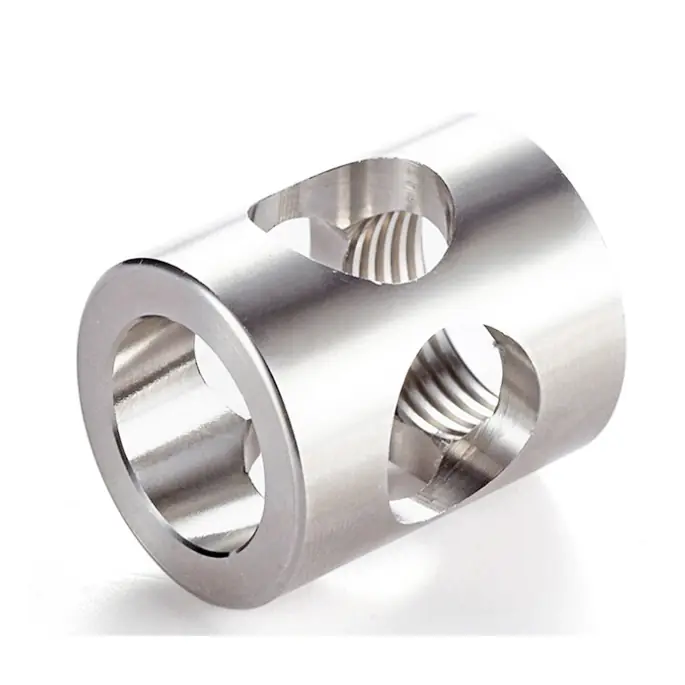

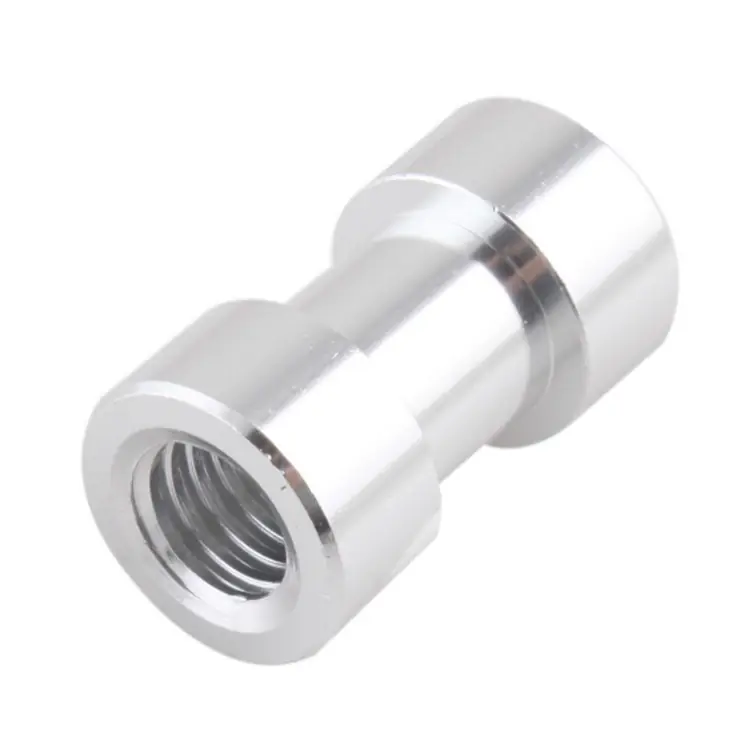

These precision threaded sleeves are manufactured by CNC turning. We supply two different geometries as product variants: the stepped coaxial sleeve (003) and the cylindrical sleeve with side threaded holes (005).
Machined from solid aluminum bar, the parts come with precisely formed internal threads to ensure smooth assembly and secure locking. Smooth machined surfaces reduce friction during motion and positioning. We can adjust thread specs, outer diameter and hole arrangement to match your assembly design.
Highlights
- CNC turning from solid aluminum bar
- Two design variants: 003 stepped sleeve / 005 side-hole sleeve
- Precision internal thread for reliable connection
- Smooth machined surface finish
- Custom thread size and dimension options
Applications
Shaft positioning, mechanical locking connectors, automation assembly, fixture spacer sleeves and precision equipment link parts.
Quote
Share your drawing or required thread specifications. We will confirm machining feasibility and offer pricing & lead time.
Additional information
| Name | 003或者005 |
|---|
